10.1 Inch Vehicle Tablet T10

Vehicle Tablet T10 for Auto Steering System

☑ High Brightness and Multi-Touch Display
10.1-inch IPS screen with 1280x800 resolution.
Ultra-bright display at over 750 nits, perfect for outdoor use and readable under direct sunlight.
Full lamination, multi-touch, and wide ≥170° viewing angles for enhanced visual clarity and interaction in any environment.
☑ Excellent CPU Performance for Reliable Control
Built with a 64-bit automotive-grade processor, Quad-core Cortex-A53 @ 1.5GHz, tested to AEC-Q100 standards for reliability in vehicle environments.
Comes standard with 2GB RAM + 16GB storage, upgradeable to 4GB RAM + 256GB, and supports expandable storage via TF card slot.
Dual OS support: Android 10 and Linux, offering flexibility for different software environments.
☑ Advanced Communication and RTK GNSS Positioning
Supports RTK and GPS GNSS, enabling RTK centimeter-level high-precision positioning — a must for accurate tractor auto steering system.
Global frequency 4G LTE connectivity for real-time data transfer and remote system updates.
UM482 or UM982 for receiving RTK correction data.
WiFi 2.4GHz and Bluetooth 4.0 ensure stable local connectivity.
Supports 2 CAN networks (500kbps/250kbps) for seamless integration with vehicle systems.
Compatible with up to 4 x 720P cameras for enhanced visual monitoring and system feedback.
☑ Rugged, Reliable Design Built for Agriculture Tractor
Power input range of 9–36V, fully compliant with ISO7637-II automotive power standards.
Certified IP66 waterproof and dustproof for all-weather reliability.
MIL-STD-810 military-grade vibration standards, ensuring durability on rough farmland terrain.
☑ Flexible Integration for a Range of Farm Equipment
Customizable I/O rear panel and support for a free SDK allow for tailored application development and system integration.
Multiple mounting options available for different agricultural vehicles — from tractors and combines to utility vehicles and sprayers.

product details

Empowering Precision Agriculture with Advanced In-Vehicle Tablet Solutions

In the age of smart farming, precision and automation are driving forces behind agricultural productivity. At the heart of many advanced auto steering systems is a rugged and intelligent vehicle-mounted tablet —PDS Technology In-vehicle Tablet T10 is designed to meet and exceed the demands of modern agricultural operations.

With seamless integration with auto steering solutions, PDS Technology’s T10 device is the ideal choice for agricultural machinery like tractors, harvesters, and sprayers.

T10 Tablet in Agricultural Auto-Steering Systems

Auto-steering technology has revolutionized farming by allowing tractors and other equipment to operate with minimal manual input. The Vehicle Tablet T10 acts as the central controller and display interface in these systems, delivering precision, control, and connectivity in the field.

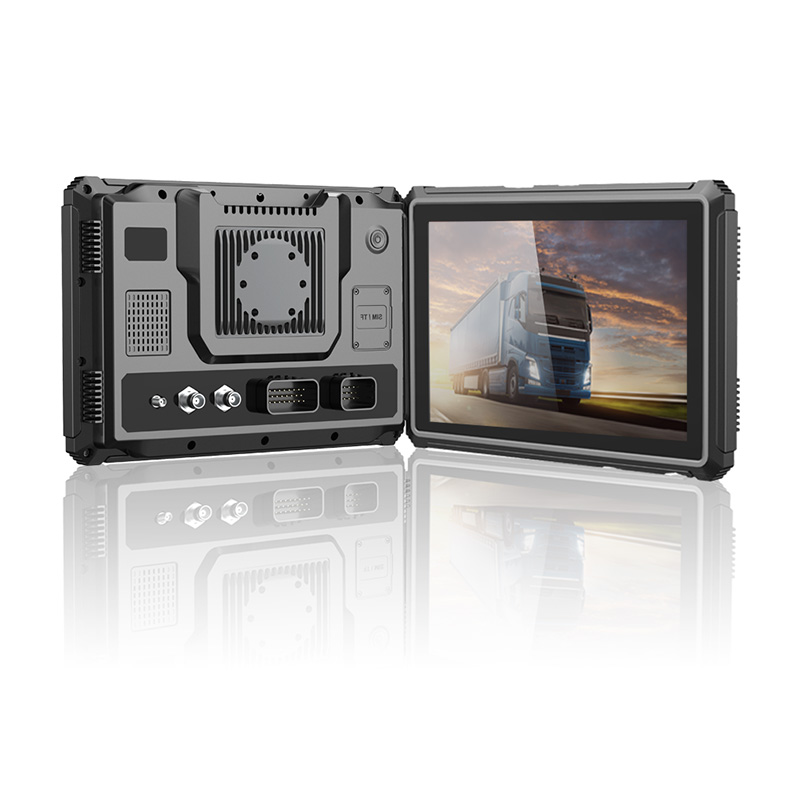

Device Diagram and I/O Ports

Device Size	275mmx190mmx47.5mm;
On case	1xSpeaker; 1xMic; 1xPower Button;
Car Slots	1xTF card slot; 1xNano 4G SIM card slot;
Default Rear I/O ports	23Pin interface; 14Pin interface; SMA for 4G antenna, 2xTNC for RTK Antennas; Rear panel I/O ports support customization;
Mount Holder	Standard 38.56mm and 75mmx75mm RAM Mount;
Materials	Enclosure PC;
Support Branding	Logo and Sticker.

Applications and Industries of 10 Inch Vehicle Tablet T10 Pro

Precision Agriculture

Auto-Steering System

Construction and Mining

Fleet Management

Public Transportation

Taxi Dispatch

More Applications for T10 in the Agriculture Industry

Precision Planting

With support for CAN bus, Ethernet, and 4G LTE, the T8 serves as a centralized control terminal for tracking fuel usage, engine diagnostics, maintenance schedules, and real-time equipment location.

Variable Rate Application (VRA)

Controls the application rate of fertilizers, herbicides, and pesticides based on soil data or prescription maps. Helps reduce chemical usage and increases yield efficiency.

Field Mapping & Boundary Management

The T10 tablet collects and visualizes GPS data to create accurate field boundaries, obstacle maps, and operation zones. Useful for planning and documenting field operations.

Spraying and Spreading Control

Automates spray boom sections or spreader outputs based on GPS positioning and crop data. Prevents over-application and environmental runoff.

Yield Monitoring and Harvest Management

Interfaces with yield monitors on harvesters to track productivity in real time. Can sync yield maps with farm management systems for post-harvest analysis.

Irrigation Control

Integrates with irrigation control systems to automate water distribution based on GPS zones or sensor input. Enhances water use efficiency and crop health.

Machine Diagnostics & Fleet Management

Connects to vehicle ECUs via CAN bus for real-time machine health monitoring. Helps with predictive maintenance, fuel management, and operational efficiency.

Why Choose the T10 Vehicle Tablet?

01

When it comes to in-vehicle tablets for farming, the T10 offers a powerful combination of rugged durability, intelligent processing, and high-precision GPS functionality. It’s purpose-built for integration with auto-guidance systems, making it a trusted companion in smart farming technologies.

If you're searching for a rugged Android vehicle tablet, tractor tablet with GPS, or a high-precision tablet for auto-steering systems, the T10 is your go-to solution.

The PDS T10 isn’t just another display — it’s the brain behind smart agricultural machinery. With its combination of robust hardware, rich connectivity, and customization capabilities, it enables farmers to take full control of their precision farming systems and stay ahead in the competitive world of Agri-Tech.
