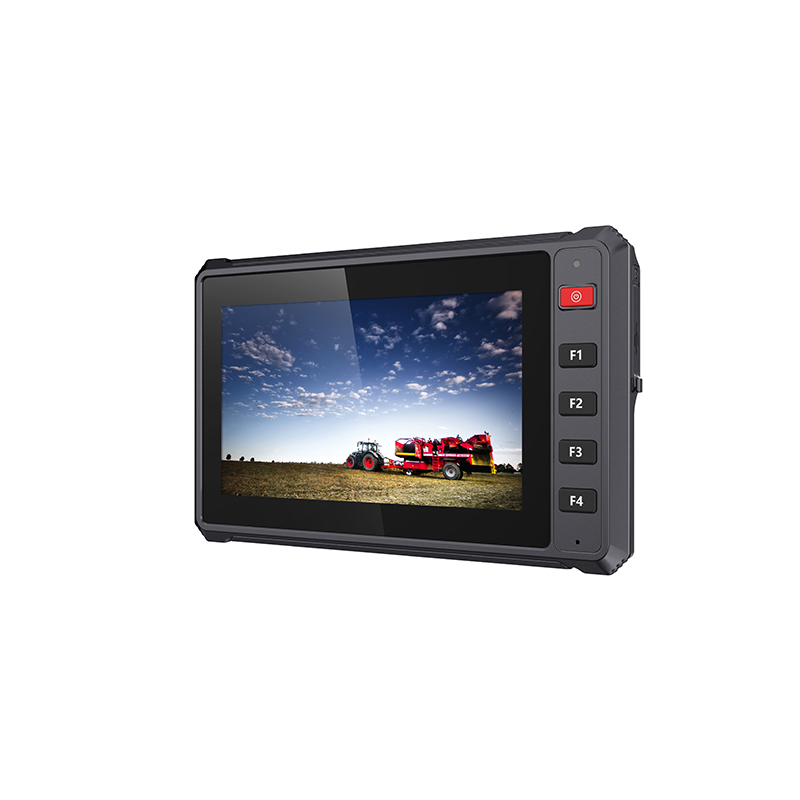

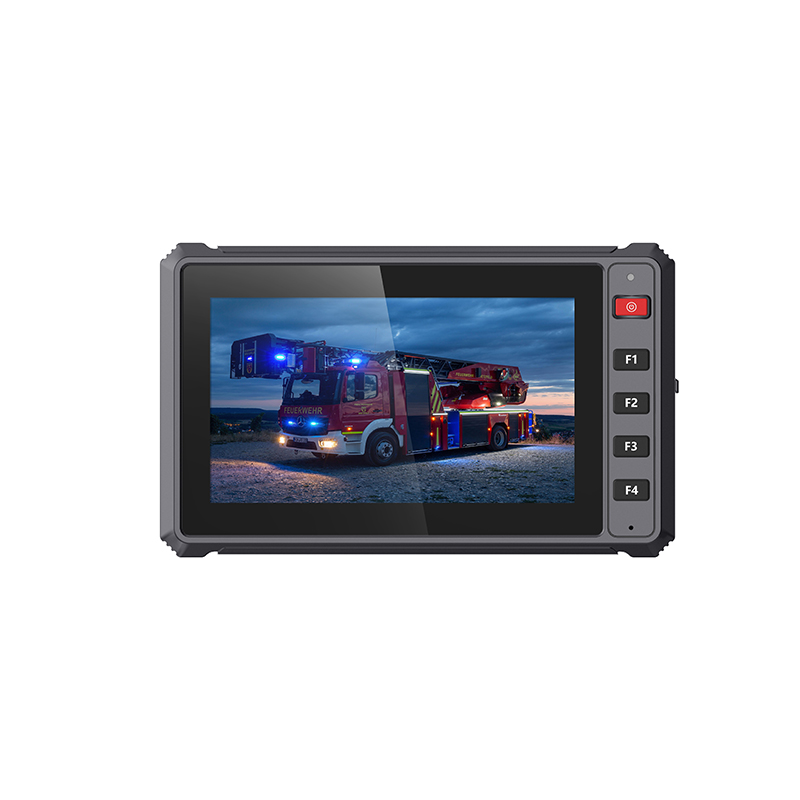

7 Inch Vehicle Tablet T7

Vehicle Tablet T7 with RTK GNSS

☑ High-Performance 64-bit Vehicle Processor.
☑ AEC-Q100 Certified Quad-Core ARM Cortex-A53 @ 1.5GHz – Automotive-grade processor with high-efficiency computing for embedded vehicle systems, ensuring reliability in extreme temperatures.
☑ Dual OS Support: Android 10 / Linux 4.9 + Qt 5 – Flexible platform for IoT telematics, autonomous driving solutions, and in-vehicle infotainment (IVI) development.
☑ 7inch 1024x600 with 750nits highlight IPS screen
☑ RTK Centimeter-Level GNSS Positioning (GPS/GLONASS/BeiDou/Galileo) – Enables high-precision navigation for autonomous vehicles, drones, and fleet management systems.
☑ Dual 720P HD Camera Input with Real-Time Preview – Ideal for ADAS applications, driver monitoring systems (DMS), and surround-view parking assistance.
☑ High-Speed CAN FD Interface (500kbps/250kbps) – can be further developed to be compatible with J1939, CAN open, and OBD-II protocols for vehicle diagnostics and automotive network communication.
☑ Support 9-36V DC input and ISO 7637II Compliance –Wide Voltage Input allow this vehicle tablet work for heavy-duty vehicles, agricultural tractors, construction excavators, mining machineries, EV charging systems, boats and off-road equipments.
☑ IP66 and MIL-STD-810G Rugged Enclosure – Dustproof, waterproof, and anti-vibrations, making it perfect for harsh industrial environments, construction machinery, and smart city infrastructure.

product details

Product Video

PDS Tech’s T7 vehicle tablet is the latest Android 10.0 or Linux-base, easy-to-use vehicle tablet from PDS technology, T7 tablet is with multi-applications and multi-functionalities but a simplified installation process, suitable for various vehicles include commercial vehicles such as agricultural tractors, excavators, loading and transport trucks and vans, engineering tower cranes, self-driving mining trucks, logistics trucks, buses, taxi, passenger cars etc.

Advantages of using In-Vehicle Rugged Tablet on Agricultural Tractors

Easy to install on every types of vehicles
T7 vehicle tablet is easy to operate, even without any training folk can mount this display on any vehicle with a simple guiding.

Multi-OS support
PDS Tech’s 7inch tablet support both Android and Linux operation system, easy to install different platforms for various using scenarios.

High-bright and multi-touch screen
Different from the common TN/VA screen, PDS Tech’s T7 vehicle tablet is designed with IPS screen. IPS screen has deeper blacks and brighter whites color, lead to a better contrast ratio and more accurate and vibrant colors, larger than 178 degrees wider viewing angles, overall better display quality. When this tablet is mounted on the trucks or van corner, display could still show the image or video clearly.

With 750nits ultra-bright features, T7 vehicle tablet delivers flawless sunlight-readable display for in-vehicle and outdoor use, ideal for fleet management, construction and rugged environments.
T7 display is with multi-touch function, whether zooming, scrolling, or rotating images and videos, operating goes smoothly and accurately with fingertips.

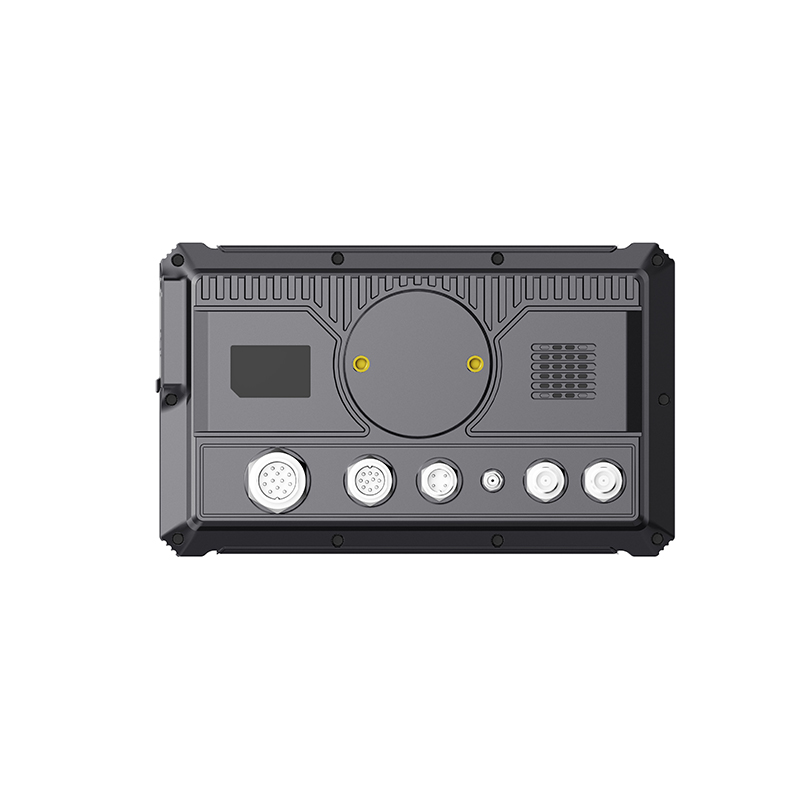

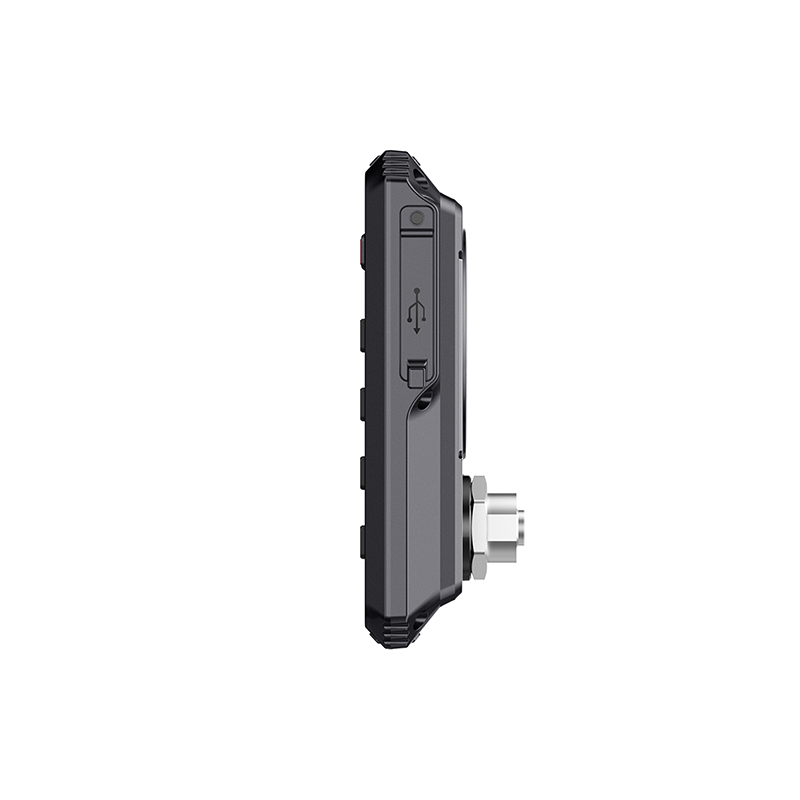

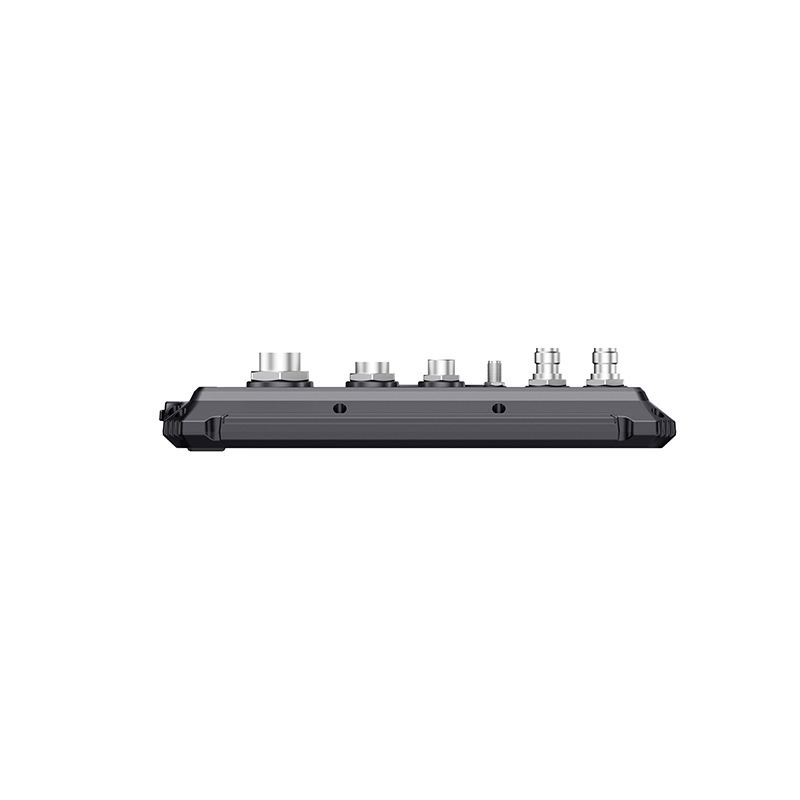

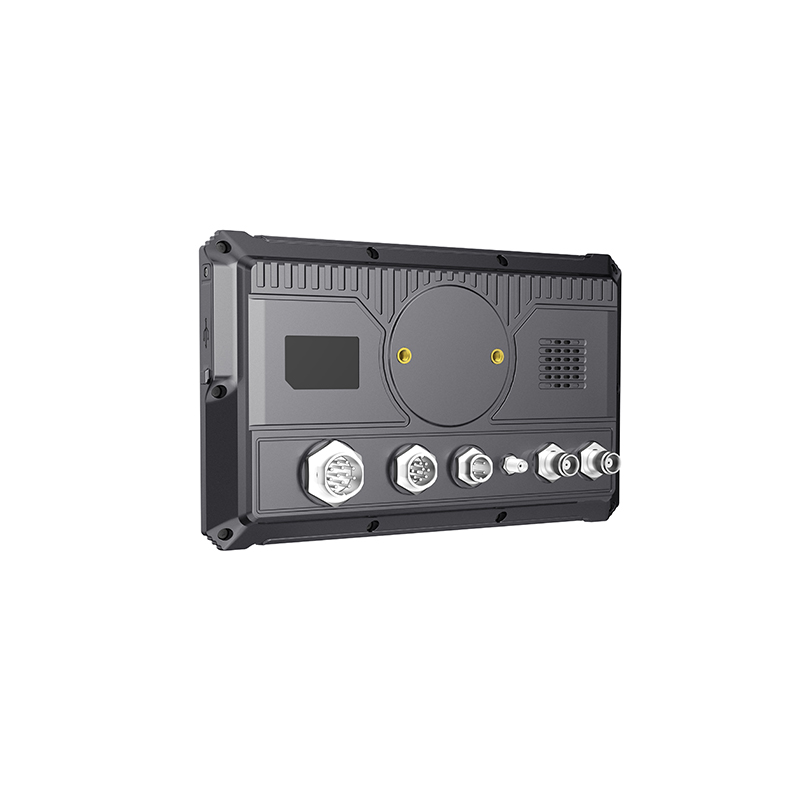

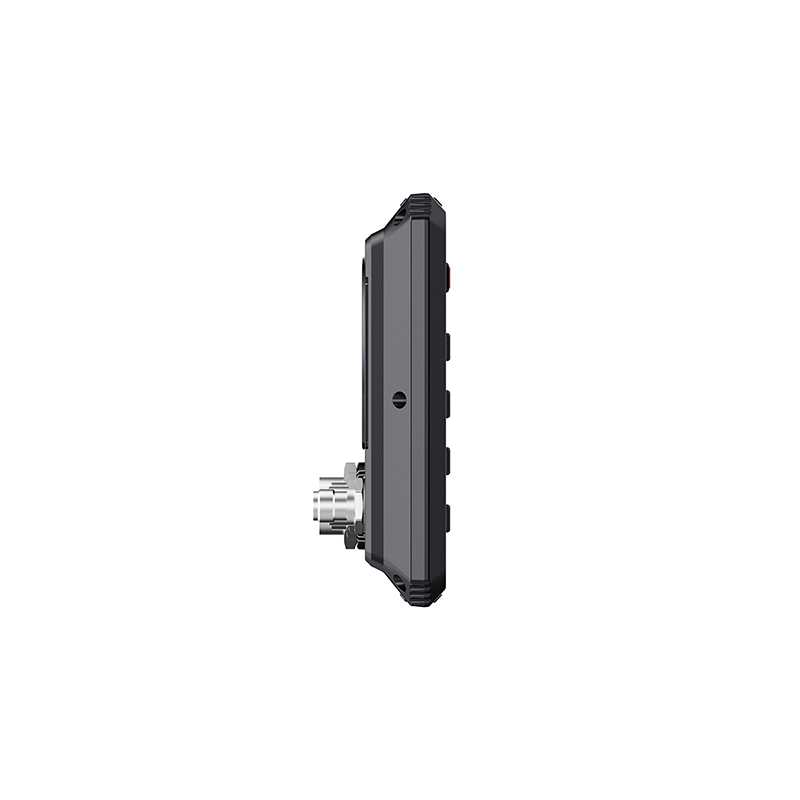

T7 Tablet Diagram and I/O Ports

Device Size	221mmx134mmx44mm
Buttons	1xRed for Power; 4xBlack for customized functions.
On case	1xSpeaker; 1xMic; 1xPower Button;
Car Slots	1xTF card slot; 1xNano 4G SIM card slot;
Customized I/O ports	14Pin interface; 4Pin aviation interface; SMA for 4G antenna, TNC for RTK Antennas;
Mount Holder	Standard 38.56mm and 75mmx75mm RAM Mount;
Materials	Enclosure PC;
Support Branding	Logo and Sticker.

Vehicle Mounting Types

A. Bracket type RAM MOUNT installation.

B. Locking column type RAM MOUNT installation.

Specification

Appearance
IP rating	IP66 Waterproof
Display	7"，1024x600， Typical brightness>=750 CD/M2 Full-fit screen technology, multi-touch
System
Processor	64-bit processor, quad-core Cortex A53, frequency 1.5GHZ, passed AEC-Q100 test
Memory	2GB
Storage	16GB
OS	Android 10
Communication
WiFi	2.4G WiFi, IEEE802.11 b/g/n
Bluetooth	BT2.1+EDR/3.0/4.0 BLE
GNSS	Support BDS B1I/B1C, GPS L1 C/A, GLO L1OF, Gal E1 frequency Support QZSS/SBAS Support BDS/GPS/GLONASS/GALILEO TTFF < 30 sec (Open sky) CEP < 2 m (Open sky) Cold start sensitivity: -147dbm
RTK GNSS(*optional )	support UNICORE UM982 RTK module
LTE	LTE for EU (Quectel module 4G module) : LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM/EDGE：B3/B8 LTE for China: LTE-FDD: B1/B3/B8 LTE-TDD: B38/B39/B40/B41
Interface
Interface	Power button x5 USB Host A x1 Nano SIM Card x1 TNC female antenna interface x2 （for GNSS） SMA female antenna interface x1 （for LTE) 14PIN connectorx1 (for function extension ） 4PIN connectorx1(for AHD camera)
Environmental
Environmental	IP Rating: IP66 Power : ISO7637-2 standard Operating Temperature: -20°C ～+70°C Relative Humidity: 10 to 90% at 40°C , non-condensing Shock & Vibration: MIL-STD-810

Applications and Industries of 7 Inch Vehicle Tablet T7

Precision Agriculture

Auto-Steering System

Construction and Mining

Fleet Management

Public Transportation

Taxi Dispatch

OEM/ODM customization Service

Hardware Customization Options:

Branding & Packaging:
☑ Customize logo stickers.
☑ Customize user manuals.
☑ Customize silk-screen printing on the enclosure.

Physical Layout & Design:
☑ Flexible I/O port configuration on the rear panel.
☑ Customize button placement on the front panel for enhanced usability.

Software Customization Options:

SDK (Software Development Kit) Secondary Development
☑ We offer SDK for developers building applications for specific platforms, operating system, or hardware device. SDK provides pre-built functions to streamline development, reducing the need to write everything from scratch.

MDM (Mobile Device Management) Secondary Development
☑ Tailored software solutions based on project scale and requirements.
☑ Supports fleet management, remote monitoring, and over-the-air (OTA) updates.

14Pin and 4Pin Aviation Connectors

14-PIN Connector
PIN No	Definition	Remark
1	CAN_H	CAN high
2	RS232_RX3	RS232 RX3 (software dev: ttyS3)
3	RS232_TX3	RS232 TX3 (software dev: ttyS3)
4	RS232_TX4	RS232_TX4(software dev: ttyS4)
5	RS232_RX4	RS232_RX4 (software dev: ttyS4)
6	CAN_L	CAN Low
7	B-	Ground
8	B-	Ground
9	ACC	Car ignition signal, 9-36V DC input
10	B+	9-36v DC input power
11	B+	9-36v DC input power
12	DC 5V out 500mA	DC 5V out 500mA
13	NA
14	NA
