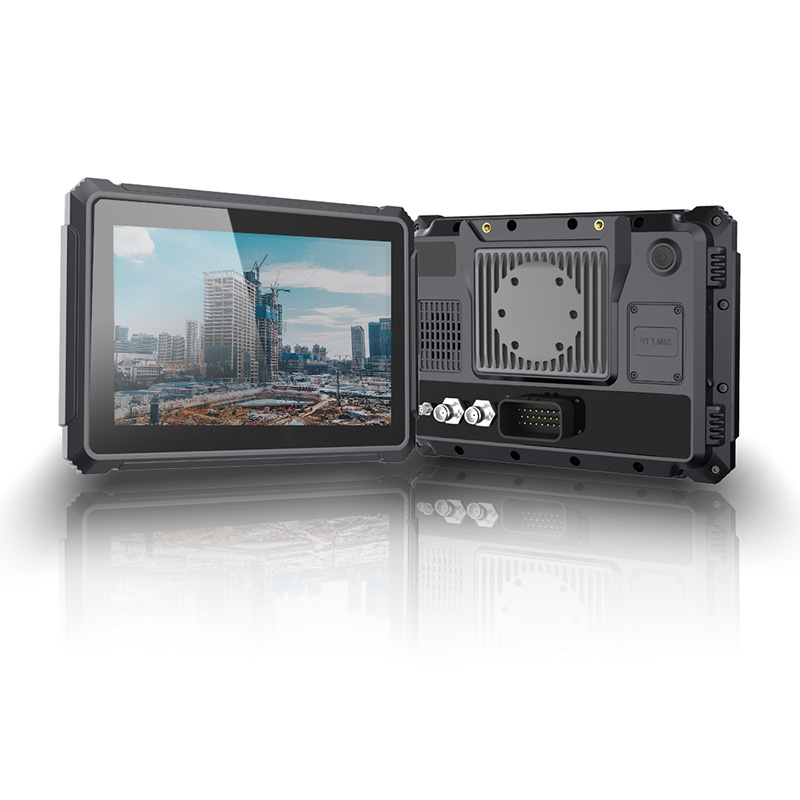

10.1 Inch Vehicle Tablet T10 Pro

Vehicle Tablet T10 Pro with RTK GNSS

☑ High Brightness and Multi-Touch Displays
10.1 inch with resolution of 1280x800 IPS Screen.
Larger than 750nits brightness be able to work under direct sunlight.
Full-fit screen >=170 degrees view angles, multi-touch, full lamination screen.
☑ Excellent CPU Processing Performance
64-bit 8-core processor, Qualcomm QCM6125, Kryo260CPU+Adreno 610GPU, frequency 2.0GHz.
4GB LPDDR4 RAM+ 64GB EMMC Storage, with TF card slot, support 512GB external storage.
Support Android 11/13 OS.
☑ Multi Data Transfer and Communication Methods
Support GPS+BD GNSS, RTK centimeter high-precision positioning.
Global frequency 4G LTE connectivity.
Harxon 1022D, frequency 410-470MHZ (used to receive RTK correction data).
Support Dual band 2.4/5GHz WiFi and Bluetooth 5.1.
Support 2 CAN networks, CAN rate 500kbps/250kbps.
Support 4x720P cameras.
☑ Durable Rugged PC Case and Wide Voltage Stand
Power input 9-36V, compatible with ISO7637-II standard.
IP66 waterproof and dustproof, MIL-STD-810 vibration standard.
☑ High Adaptability for Various Vehicles and Applications
Customized I/O rear panel and free SDK.
Multi- vehicle mount installation for different types of vehicles.

PDS Technology’s Vehicle tablet T10 pro designed with 10.1 inch display, is able to withstand harsh environments and perfect for agricultural planting, construction and mining, logistics, warehousing, public transportation, field service, and manufacturing applications.

product details

Video of T10 10.1 Inch Vehicle Tablet

With its IP66 and MIL-STD-810 vibration military-grade durability, powerful processing capabilities, and flexible connectivity options, PDS Technology’s T10 pro tablet enables organizations to improve the accuracy of fleet location, enhance real-time data collection and transfer, and significantly improve workforce productivity. Whether used for precision agriculture, fleet management, driving behavior tracking and monitoring, or mobile workforce coordination, this rugged tablet ensures reliability and efficiency in even the most demanding industrial settings.

Advantages

By integrating advanced technology with rugged design, PDS Technology’s In-Vehicle Computers ensures businesses to overcome operational challenges, reduce downtime, and achieve greater productivity in daily operations.

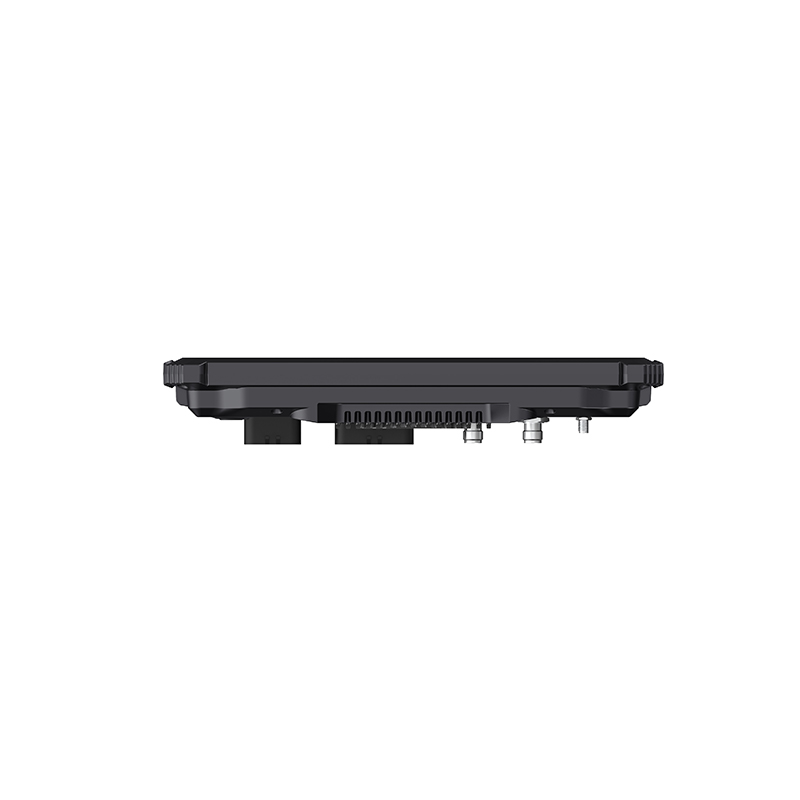

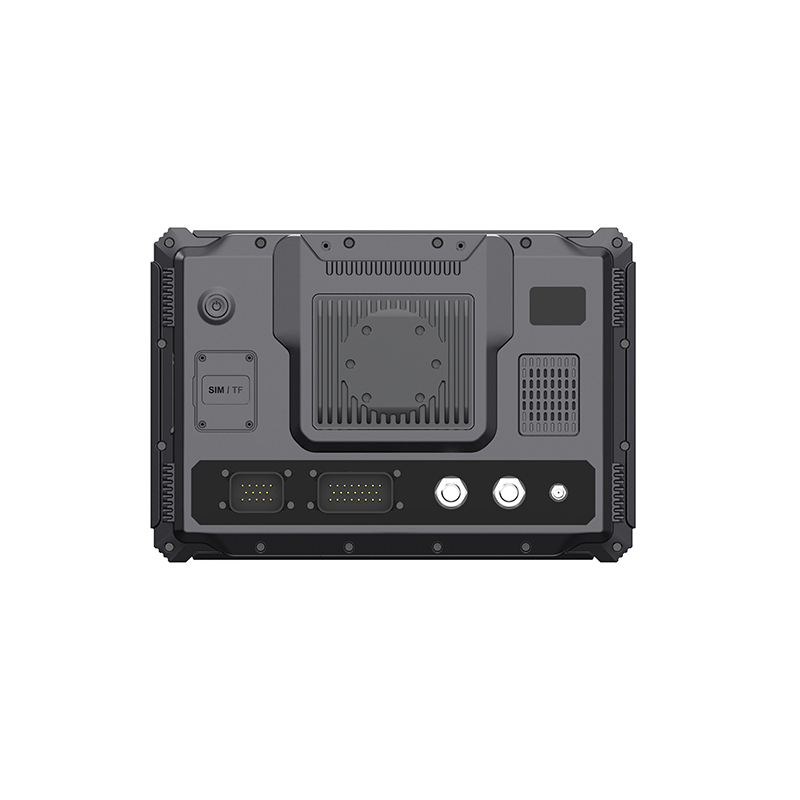

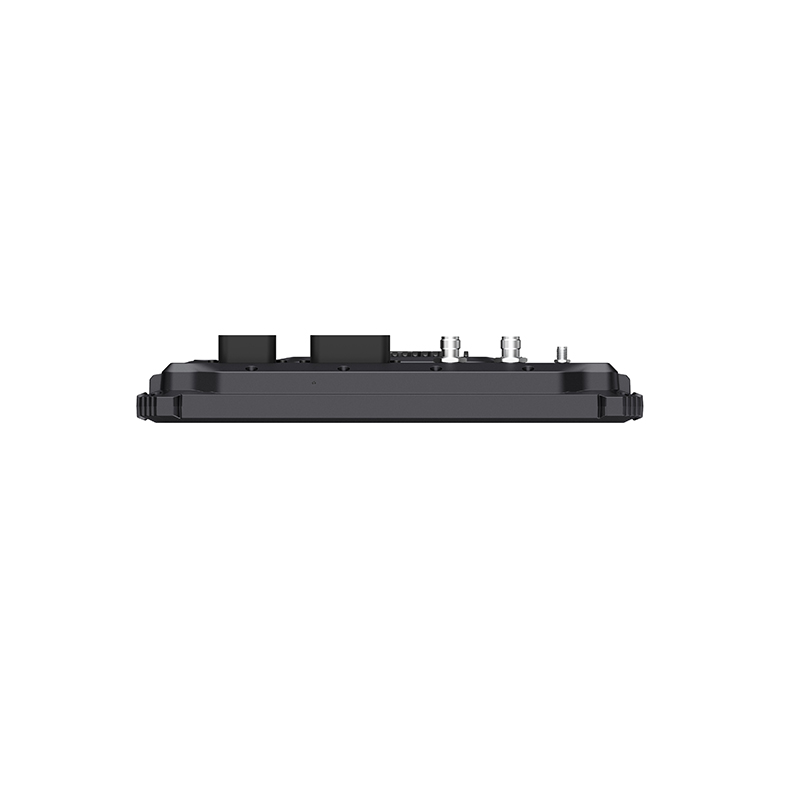

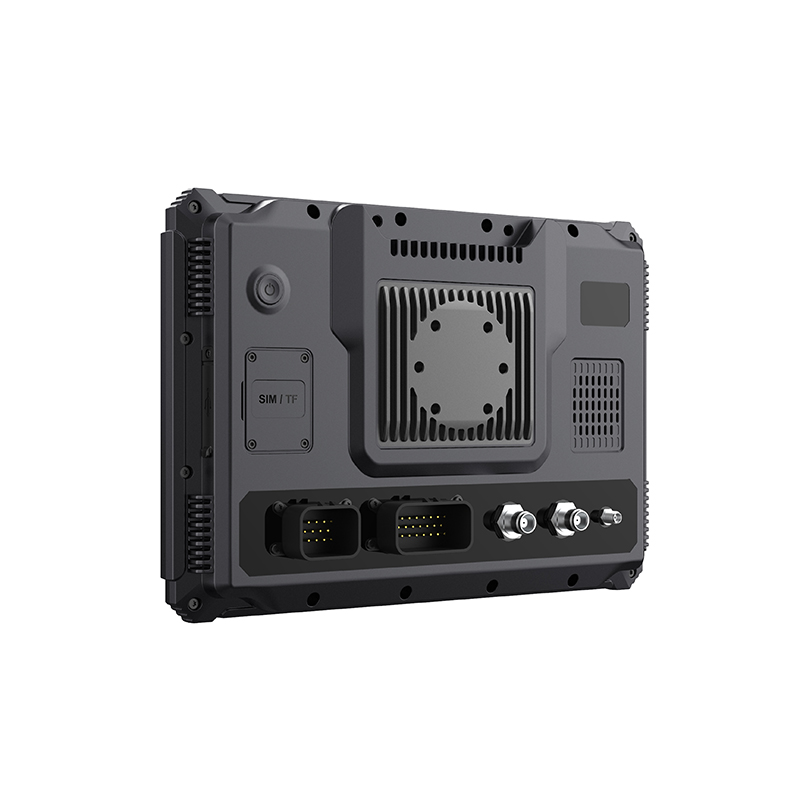

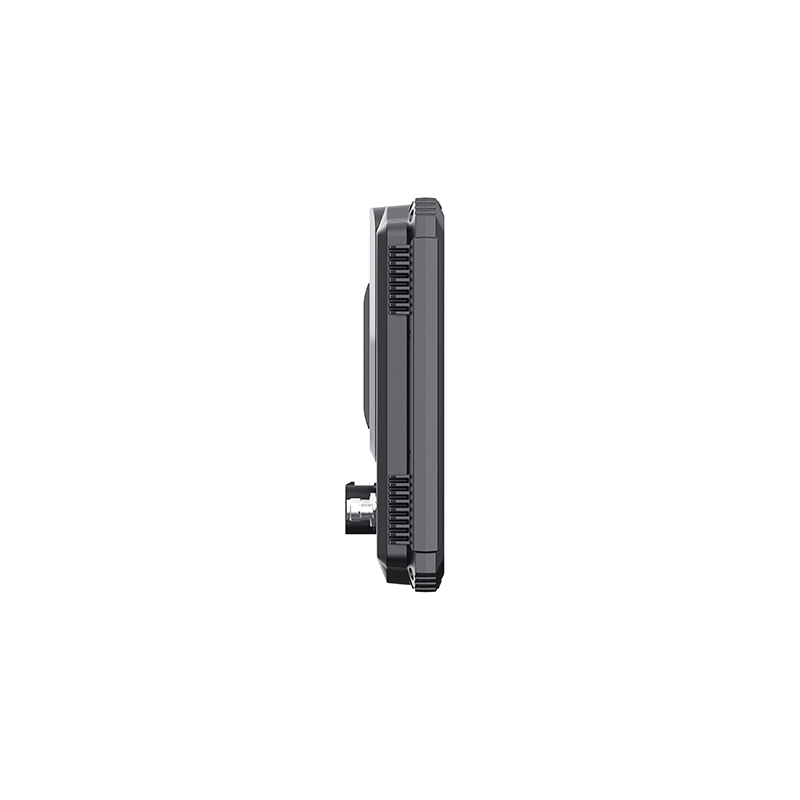

Device Diagram and I/O Ports

Device Size	275mmx190mmx47.5mm;
On case	1xSpeaker; 1xMic; 1xPower Button;
Car Slots	1xTF card slot; 1xNano 4G SIM card slot;
Default Rear I/O ports	23Pin interface; 14Pin interface; SMA for 4G antenna, 2xTNC for RTK Antennas; Rear panel I/O ports support customization;
Mount Holder	Standard 38.56mm and 75mmx75mm RAM Mount;
Materials	Enclosure PC;
Support Branding	Logo and Sticker.

Vehicle Mounting Types

A. Bracket type RAM MOUNT installation.

B. Locking column type RAM MOUNT installation.

Specification

Appearance
IP rating	IP66 Waterproof
Display	10.1", 1280x800, brightness>=750 CD/M2 Full-fit screen technology, multi-touch
Size	275mmx190mmx47.5mm
System
Processor	64-bit 8-core processor, Qualcomm QCM6125, Kryo260CPU+Adreno 610GPU, frequency 2.0Ghz
Memory	4GB LPDDR4
Storage	64GB EMMC + external storage 512GB optional (by micro sd )
OS	Android 11 / ANDROID 13
Communication
WiFi	Dual-band WiFi, 2.4&5GHz, 802.11a/b/g/n/ac
Bluetooth	BT5.1
GNSS	Qualcomm built-in GNSS module
LTE	LTE for EU LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 MHz
GNSS RTK Module (*optional)	UNICORE UM482 or UM982 RTK module
Radio (*optional)	Harxon 1022D, frequency 410-470MHZ ( used to receive RTK correction data)
Interfaces
Interfaces	Powerbutton x1 USBC x 1 (for software debugging） USB Host A x1 TF Card x1 Nano SIM Card x1 TNC female antenna interfacex2（for GNSS） SMA female antenna interfacex1（for LTE) 23PIN connectorx1 (*for function extension ）
*Function extension （23PIN)	Default configuration: 4xCAMERA+2xCAN+2xRS232+1xUSB2.0
Environmental
Environmental	Power: ISO7637-2 standard 9-36V input Operating Temperature: -20°C ～+70°C Relative Humidity: 10 to 90% at 40°C , non-condensing Shock & Vibration: MIL-STD-810

Applications and Industries of 10 Inch Vehicle Tablet T10 Pro

Precision Agriculture

Auto-Steering System

Construction and Mining

Fleet Management

Public Transportation

Taxi Dispatch

OEM/ODM customization Service

Hardware Customization Options:

Branding & Packaging:
☑ Customize logo stickers.
☑ Customize user manuals.
☑ Customize silk-screen printing on the enclosure.

Physical Layout & Design:
☑ Flexible I/O port configuration on the rear panel.
☑ Customize button placement on the front panel for enhanced usability.

Software Customization Options:

SDK (Software Development Kit) Secondary Development
☑ We offer SDK for developers building applications for specific platforms, operating system, or hardware device. SDK provides pre-built functions to streamline development, reducing the need to write everything from scratch.

MDM (Mobile Device Management) Secondary Development
☑ Tailored software solutions based on project scale and requirements.
☑ Supports fleet management, remote monitoring, and over-the-air (OTA) updates.

Customized 23Pin 14Pin and 6Pin Connectors

PIN No	Default configuration: 4xCAMERA+2xCAN+2xRS232+1xUSB2.0	Option one: 4xCAMERA+2xCAN+1xRS485+1xUSB2.0+2xGPIO_INPUT
1	CAN1_H_IO	CAN1_H_IO
2	CAN1_L_IO	CAN1_L_IO
3	CAN2_H_IO	CAN2_H_IO
4	CAN2_L_IO	CAN2_L_IO
5	B-	B-
6	B-	B-
7	B+（9-36V vehicle power input）	B+（9-36V vehicle power input）
8	B+（9-36V vehicle power input）	B+（9-36V vehicle power input）
9	AHD1	AHD1
10	AHD2	AHD2
11	AHD3	AHD3
12	AHD4	AHD4
13	12V_OUT1 (12V,1A)	12V_OUT1 (12V,1A)
14	12V_OUT2 (12V,1A)	12V_OUT2 (12V,1A)
15	RS232-TX3	IO_INPUT1_GPIO_26
16	RS232-RX3	IO_INPUT1_GPIO_128
17	RS232-RX4	485A_IO
18	RS232-TX4	485B_IO
19	USB3_DM	USB3_DM
20	USB3_DP	USB3_DP
21	VCC_5VOUT	VCC_5VOUT
22	GND	GND
23	ACC_IN	ACC_IN
